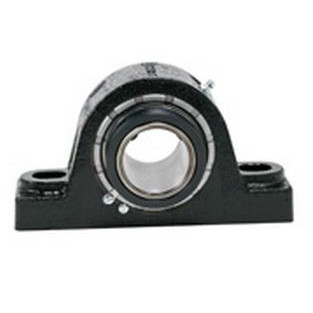

2-15/16"-ID 2-BOLT PILLOW BLOCK UNIT
Base to Centerline Height | 3 1/4" |
Bearing Series | 2000 |
Bolt Size | 3/4" |
C Basic Dynamic Load Rating | 57,750 lbf |
Co Basic Static Load Rating | 71,500 lbf |
D - Length Through Bore [Nom] | 4" |
Diameter of the Shaft | 2 15/16" |
Distance Between Bolt Holes [Nom] | 8 1/8" |
Distance from Housing Cast Face to Inner Ring Long Hub Face | 7/8" |
Distance from Housing Cast Face to Locking Feature Face | 7/8" |
Duty Type | Standard Duty (Normal) |
Expansion Capability | No |
F - Mounting Bolt Size | 3/4" |
Housing Configuration | One-piece |
Housing Material | Cast Iron |
Housing Type | Pillow Block |
Inner Ring Hub Diameter | 3 3/8" |
Locking Collar Outside Diameter | 4 1/16" |
Locking Collar Type | One Setscrew (Spring) Locking Collar |
Locknut Outside Diameter | 4 1/16" |
Overall Housing Height | 6 7/16" |
Pillow Block Type | Two-Bolt Pillow Block |
Product Feature Summary |
Cast iron housing Corrosion resistant powder coating Broad range of sealing options Factory set clearance & lubrication Precision ground & superfinished raceways Hardened spring locking collar See Features & Benefits section for additional info. Misalignment capabilities - Total of 4° Field interchangeable seals Fixed or Expansion - Total of 3/8" expansion |
Rolling Element | Spherical |
Mounting Bolt Hole Slot Length | 1 1/8" |
Mounting Pad Height | 2" |
Mounting Pad Length | 10 7/16" |
Mounting Pad Width | 3 3/16" |
Size Code | 9 |
Special Feature | Pillow Block |
Speed [Max] | 2,800 rpm |
Type of Seal | Clearance (Z) |
