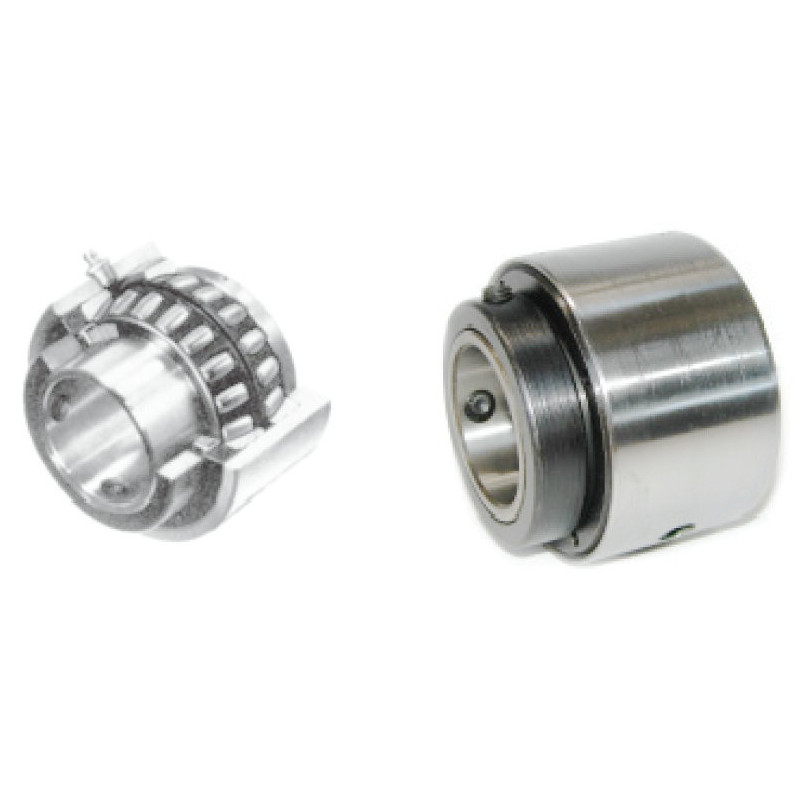

" LNK " CB-224-M-60-H LINK BELT / REXNORD
60-MM-ID SPHERICAL ROLLER BEARING - LNKCB224M60H>
Description
60-MM-ID SPHERICAL ROLLER BEARING
| Ability to Relubricate | Yes |
| Assembled with Extended Inner Ring With Separable Outer Ring | Yes |
| Available Seal Type | H Labyrinth Seal |
| Bearing Series | B22400 |
| C Basic Dynamic Load Rating | 38,300 lbf |
| Cartridge Length | 66.68 mm |
| Cartridge Unit Wall Thickness | Thick |
| Co Basic Static Load Rating | 53,500 lbf |
| D - Length Through Bore [Nom] | 88.90 mm |
| Diameter - Outside | 127.0000 mm |
| Diameter of the Shaft | 60.00 mm |
| Distance from Bearing Centerline to Cap Face | 65.10 mm |
| Distance from Bearing Centerline to Inner Ring Face | 55.600 mm |
| Distance from Cartridge End to Inner Ring Long Hub Face | 89.70 mm |
| Distance from Housing Cast Face to Inner Ring Long Hub Face | 21.40 mm |
| Expansion Capability | No |
| High Speed Shaft (HSS) Speed [Max] | 2,300 rpm |
| Housing Material | Cast Iron |
| Housing Type | Cartridge Block |
| Locking Collar Outside Diameter | 90.50 mm |
| Locking Collar Type | One Setscrew (Spring) Locking Collar |
| Product Feature Summary | Cast iron housing; Factory set clearance & lubrication; Hardened spring locking collar; Misalignment capabilities - Total of 4°; Field interchangeable seals |
| Rolling Element | Spherical |
| Size Code | B440 |
| Special Feature | Cast Iron Cartridge Block |
| Speed [Max] | 2,300 rpm |
| Type of Seal | Clearance Seal (H) |
| Unit of Measure | mm |
