" JET " 752122 JET EQUIPMENT AND TOOLS

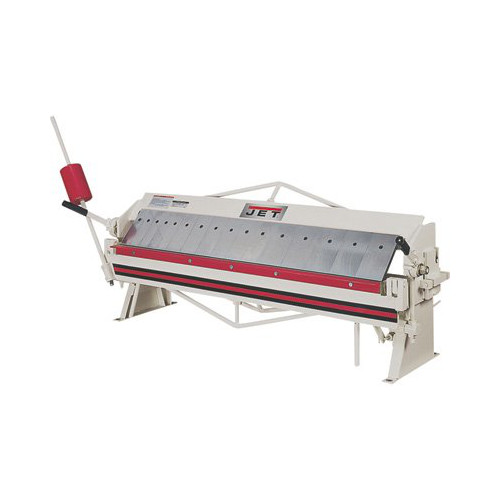

48" X 22-GAUGE BOX AND PAN BRAKE - JET752122>
Description
48" X 22-GAUGE BOX AND PAN BRAKE
BP-2248H (BP2248H)
Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision
- Incorporates all the features of our standard hand brakes but with greater range of applications
- With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
- Sectioned fingers are easily removed for box bending and special forming operations
- Total of 16 assorted size section fingers
| Style (Type) | Bench Box and Pan |
| Mild Steel Capacity (Gauge) | 22 |
| Bending Length Capacity (In.) | 48 |
| Maximum Box Depth (In.) | 3 |
| Maximum Lift of Beam (In.) | 7/8 |
| Beam Adjustment (Front to Rear) (In.) | 1/8 |
| Number and Width of Fingers (In.) | 5-2, 6-3, 5-4 |
| Finger Nose Angle (Deg.) | 45 |
| Nose Radius (In.) | 1/32 |
| Overall Dimensions (L x W x H) (In.) | 61 x 31 x 28 |
| Weight (Lbs.) | 506 |
