" LNK " FC-3-U-220-N LINK BELT / REXNORD

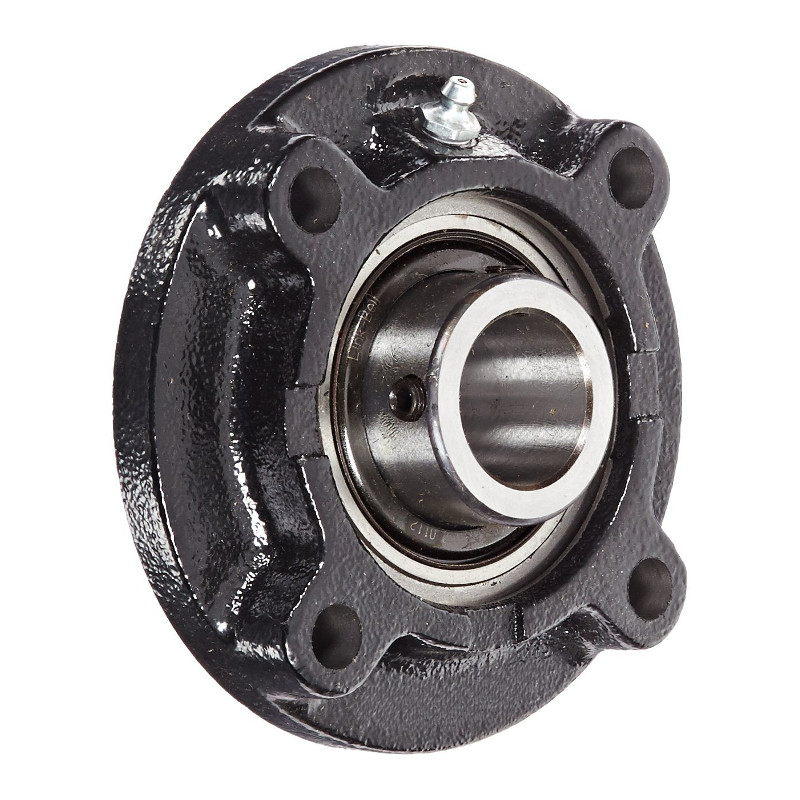

1-1/4"-ID 4-BOLT BALL BEARING FLANGE UNIT - LNKFC3U220N>
Description
1-1/4"-ID/BORE 4-BOLT/HOLE BALL BEARING STANDARD BUTY FLANGE UNIT
- Set screw locking
- Non-Expansion
- Bore Diameter: 1-1/4"
- Bolt Circle Diameter: 4-3/8"
- Overall Length/Diameter: 5-1/4"
- Mounting Type: Four-Bolt Piloted
- Bore Type: Round
- Duty Type: Normal Duty
- Housing Material: Cast Iron
- Locking Device: Set Screw
- Seal Type: Contact/Lip
- Expansion Type: Non-Expansion Bearing (Fixed)
- Finish/Coating: Powder Coated
- Radial Dynamic Load Capacity: 4470 lbf
- Radial Static Load Capacity: 3440 lbf
- Length Through Bore: 1-31/64"
- Maximum RPM: 4800 RPM
- Lubrication Type: Lubrication Fitting
- Series: 200
- Standards Met: ANSI/ABMA STD 9-1990
