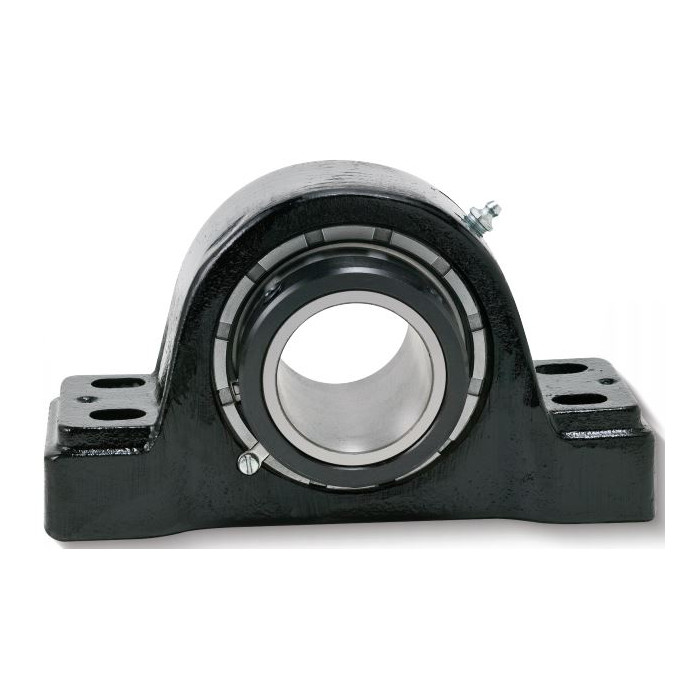

" LNK " PB-22571-YFH LINK BELT / REXNORD

PrintEmail
4-7/16"-ID 4-BOLT SPHERICAL ROLLER BEARING PILLOW BLOCK - LNKPB22571YFH>
Sale Price: $ 1,551.95
Ask a question about this product
Description

4-7/16"-ID 4-BOLT SPHERICAL ROLLER BEARING PILLOW BLOCK

  • Mounting Pad Height: 2-3/4"
  • Mounting Pad Length: 16-1/2"
  • Mounting Pad Width: 4-5/8"
  • Overall Housing Height: 9-3/8"
  • Pillow Block Type: Four-Bolt Pillow Block
  • Rolling Element: Spherical
  • Speed [Max]: 1,300 rpm
  • Type of Seal: Clearance Seal (H)
  • Mounting Pad Height: 2.75"
  • Mounting Bolt Hole Slot Length: 1-3/8"
  • Model Type: PB
  • Locking Collar Type: Two Setscrew (Spring) Locking Collars
  • Locking Collar Outside Diameter: 6-3/16"
  • Housing Type: Pillow Block
  • Housing Material: Cast Iron
  • Housing Configuration: One-piece
  • F - Mounting Bolt Size: 3/4"
  • Expansion Capability: No
  • Distance from Housing Centerline to Inner Ring Long Hub Face: 3-1/8"
  • Distance from Housing Cast Face to Inner Ring Long Hub Face: 1"
  • Distance Between Bolt Holes [Nom]: 13-1/2"
  • Diameter of the Shaft: 4-7/16"
  • D - Length Through Bore [Nom]: 6-1/4"
  • Co Basic Static Load Rating: 178,000 lbf
  • C Basic Dynamic Load Rating: 94,300 lbf
  • Bolt Hole Spacing (Width): 2-1/2"
  • Bearing Series: B22500
  • Base to Centerline Height: 4-3/4"
  • Attachment Bolt Diameter: 4.44"
  • Assembled with Extended Inner Ring With Separable Outer Ring: Yes
  • Ability to Relubricate: Yes
