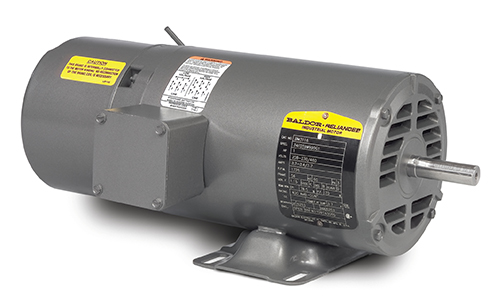

Motor Category: | General Purpose Brake Motor |
Motor Phase: | 3 ph |
HP: | 3/4 hp |
Synchronous RPM: | 1800 rpm |
Supply Voltage: | 208-230/460 V |
Frame Size: | 56 |
Enclosure Type: | ODP |
Frequency Rating: | 60 Hz |
Duty / Condition Type: | Continuous Duty |
Mounting Type: | Foot Mounted |
Thermal Protection: | Automatic/Manual OFF |
Full Load Current: | 1.5 A |
Full Load Amps: | 3.2-3/1.5 |
Full Load Efficiency: | 75.5 % |
Amps @ Voltage: | 3.6 A @ 208 V; 3.2 A @ 208 V; 3.0 A @ 230 V; 1.5 A @ 460 V |
Volts @ Frequency: | 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz |
Shaft Diameter: | 5/8" in |
Overall Length (C-Dimension): | 14.77 in |
Warranty: | 2 Year |
Bearing Type: | Ball |
NEMA Design Class: | B |
Service Factor: | 1.25 |
Frame Material: | Steel |
Insulation Class: | B |
IP Rating: | 22/23 |
Standards Met: | NEMA |
Weight: | 31 lb |
Harmonization Code: | 8501.51.4040 |
Applications: | Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold. |
Additional Details: | Spring-set brake. Power off operation manual release. Resets automatically. Brakes internally connected to motor on 215T and smaller. Super-E motors are 1.15 service factor and suitable for inverter use. |
