" REX " ZBR-2204 REXNORD

PrintEmail

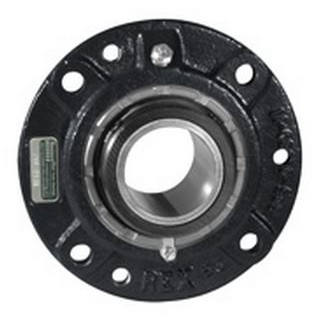

2-1/4"-ID 4-BOLT FLANGE UNIT - REXZBR2204>
Sale Price: $ 610.14
Description

2-1/4"-ID 4-BOLT FLANGE UNIT

Bearing Series 2000
Bolt Circle Radius 3"
Bolt Size 1/2"
C Basic Dynamic Load Rating 36,670 lbf
Co Basic Static Load Rating 44,400 lbf
D - Length Through Bore [Nom] 3-5/16"
Diameter of the Shaft 2-1/4"
Distance Between Bolt Holes [Nom] 4-1/4"
Distance from Housing Cast Face to Inner Ring Long Hub Face 13/16"
Distance from Housing Cast Face to Locking Feature Face 13/16"
Distance from Mounting Surface to Cast Face 1-3/4"
Distance from Mounting Surface to Collar Face 1-3/4"
Distance from Mounting Surface to End of Pilot End 1-9/16"
Duty Type Standard Duty (Normal)
Expansion Capability No
F - Mounting Bolt Size 1/2"
Flange Block Footing Type Standard
Flange Block Type Flange Cartridge Block - Fixed
Flange Housing Outside Diameter 7-1/8"
Flange Pilot Diameter Step Width 5"
Flange Shape Round
H - Mounting Flange Width 9/16"
Housing Material Cast Iron
Housing Type Flanged Cartridge Block
Locking Collar Outside Diameter 3-1/4"
Locking Collar Type One Setscrew (Spring) Locking Collar
Locknut Outside Diameter 3-1/4"
Pilot Depth 1"
Pilot Diameter 5"
Product Feature Summary

Cast iron housing

Corrosion resistant powder coating

Broad range of sealing options

Factory set clearance & lubrication

Precision ground & superfinished raceways

Hardened spring locking collar

See Features & Benefits section for additional info.

Misalignment capabilities - Total of 4°

Field interchangeable seals

Rolling Element Spherical
Mounting Pad Height 9/16"
Number of Mounting Bolts for Block 4-Bolt
Size Code 7
Special Feature Flanged Cartridge Block
Speed [Max] 3,650 rpm
Type of Seal Clearance (Z)
