" ILS " TA-500 ILSCO COMPANY PRODUCTS

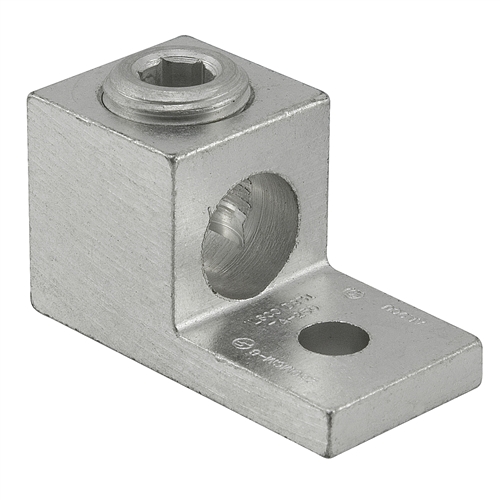

MECHANICAL ELECTRICAL LUG - ILSTA500>
Description
MECHANICAL ELECTRICAL LUG
- Manufactured from high strength 6061-T6 aluminum alloy.
- Electro-Tin plated.
- UL 486A/B 90° C Listed and is CSA certified.
- Suitable for use in circuits rated at 35 KV or less; proper high voltage spacing and insulation techniques must be used.
- Suitable for use with either copper or aluminum conductors.
- Chamfered wire entry provides ease of installation.
- UL File E6207
Conductor Range: 500 kcmil-4 AWG
Bolt/Stud Size: 3/8"
Length: 2.8125"
Width: 1.5000"
Height: 1.5620"
Hex Size: 1/2
