" ILS " CSWS-2/0-12 ILSCO COMPANY PRODUCTS

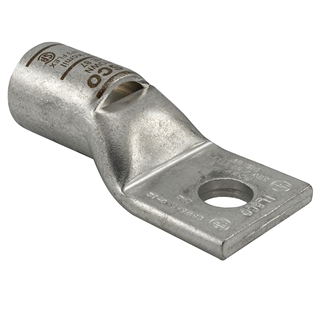

2/0-AWG X 1/2" BOLT HOLE CABLE LUG - ILSCSWS2/012>
Description
2/0-AWG X 1/2" BOLT HOLE CABLE LUG
- Manufactured from high strength seamless copper tubing.
- Electro-Tin plated.
- Maximum conductivity and excellent crimping characteristics.
- Standard barrel length with chamfered entry.
- Sight hole and chamfered barrel for visual inspection of proper cable insertion.
- Color Coded.
- UL 486A/B 90° C Listed and CSA Certified.
- 1/0 AWG - 8 AWG UL467 Listed for grounding and bonding applications.
- Meets NEBS Level 3 requirements.
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV.
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless tool.
- For Copper Conductor only.
- Ilsco connectors are UL Listed and CSA Certified with ILSCO or other Manufacturers' tools.
- UL File E6207
Bolt/Stud Size: 1/2"
Mounting Hole Diameter: 0.5620"
Tang Length: 1.2500"
Tang Width: 0.8110"
Barrel Length: 0.7500"
Strip Length: 0.8120"
Overall Length: 2.3960"
OD: 0.5620"
ID: 0.4370"
