Back to: HOISTS

" JET " 151060 JET EQUIPMENT AND TOOLS

Name: 151060 JET EQUIPMENT AND TOOLS
SKU: JET151060
Price: 2874.7 USD
Availability: OutofStock

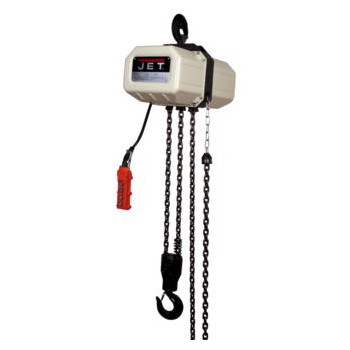

1/2-TON 10'-LIFT 1-PHASE ELECTRIC CHAIN HOIST - JET151060>

Sale Price: $ 2,874.70

Ask a question about this product

Description

1/2-TON 10'-LIFT 1-PHASE ELECTRIC CHAIN HOIST

SAFETY
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
- Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
- DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling

DURABILITY
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
- All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
PERFORMANCE
- Single Phase:
- Duty Rating- H3
- Duty Cycle- 25%
Standards
- Industry- Complies with OSHA Regulations, ANSI / ASME B30.16 and HST-1 Standards
- Certification- Load tested to 125% of capacity with certificate
- Controls- NEMA 4X compliant push button control pendants

Load Capacity (Tons)	1/2
Lift (Ft.)	10
Duty Cycle Rating	H3
Duty Cycle (%)	25
Motor Phase	1
Lifting Speed (FPM)	19
Headroom (In.)	20-3/16
Motor Power (HP)	7/8
Motor Voltage (V.)	115 / 230
Load Chain Dimensions (Mm.)	6.3 x 19
Number of Falls	1
