" JET " 321810 JET EQUIPMENT AND TOOLS

PrintEmail

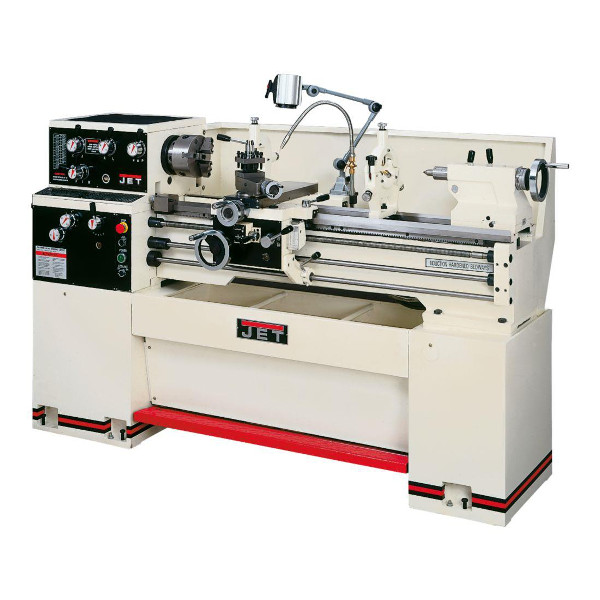

13" GEARED HEAD LATHE - JET321810>
Sale Price: $ 7,168.55
Description

13" GEARED HEAD LATHE GH-1340W-1 (GH1340W1)

The JET Geared head engine lathe design features precision bearings supporting the hardened and ground spindle and splined, instead of keyed shafts are utilized in the constantly oiled gearbox.

  • 1-1/2" bore spindle supported by precision tapered bearings
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized
  • Gearbox provides larger threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Tolerance test certificate included
  • Heavy duty stand
  • 6" 3 jaw direct mount chuck with top reversing jaws
  • 8" 4-jaw independent chuck
  • 12" face plate
  • Four-way tool post
  • Steady and follow rest
  • Micro-carriage bed stop
  • Front removable chip tray
  • Spindle jog button
  • Foot brake
  • Coolant system with splash guard
  • Metric Change Gears
  • Halogen Work Lamp
Size 13 x 40
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-1/4
Swing Through Gap (In.) 19
Length of Gap (In.) 9-3/8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 40 - 1,800
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0011 - .0271
Range of Cross Feeds (IPR) .0003 - .0103
Number of Inch Threads 40
Range of Inch Threads (TPI) 4 - 112
Number of Metric Threads 22
Range of Metric Threads .45 - 7.5
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 3-1/2
Cross Slide Travel (In.) 6-3/8
Carriage Travel (In.) 37-1/2
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/4
Steady Rest Capacity (In.) 3-1/2
Width of Bed (In.) 10-1/2
Motor (HP) 3 HP, 230V, 1Ph
Prewired (V.) 230
Weight (Lbs.) 2,081
Overall Dimensions (L x W x H) (In.) 78 x 38 x 59
Drive Geared Head
Style (Type) Engine - Geared Head
