" LEV " 2341 LEVITON ELECTRICAL PRODUCTS

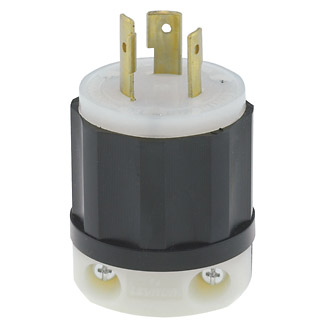

LOCKING ELECTRICAL PLUG - LEV2341>
Description
LOCKING ELECTRICAL PLUG
- AC Horsepower Ratings
- At Rated Voltage: 3 HP
- Electrical Specifications
- Grounding: Grounding
- Amperage: 20 Amp
- Voltage: 480 Volt
- NEMA: L8-20P
- Pole: 2
- Wire: 3
- Dielectric Voltage: Withstands 2000V per UL498
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Environmental Specifications
- Flammability: Rated HB or better UL94
- Operating Temperature: -40C to 60C
- Material Specifications
- Body Material: Impact Modified Nylon
- Back Cover: Thermoplastic
- Wire Module: Nylon
- Cord-Clamp: Nylon
- Clamp Insert: Nylon
- Blades/Contacts: Solid Brass
- Terminal Screws: Brass
- Assembly Screws: Steel, Zinc Plated
- Color: Black-White
- Mechanical Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings are permanently marked on device
- Cord Range: .385 - .780
- Wire Gauge: 16-10 AWG
- Product Features
- NEMA: L8-20P
- Color: Black-White
- Standards and Certifications
- NEMA: WD-6
- ANSI: C-73
- UL498: File E13393
- UL Fed Spec WC-596: File E13393
- CSA C22.2 No. 42: File LR-406
- NOM: 057
