" LEV " 5050 LEVITON ELECTRICAL PRODUCTS

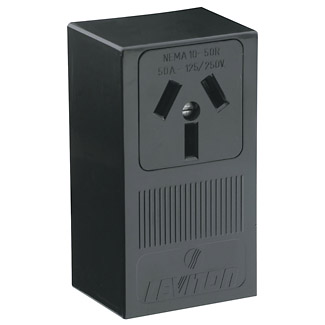

SURFACE-MOUNT RANGE RECEPTACLE - LEV5050>
Description
SURFACE-MOUNT RANGE RECEPTACLE
- At Rated Voltage: 3 HP
- Electrical Specifications
- Grounding: Non-Grounding
- Amperage: 50 Amp
- Voltage: 125/250 Volt
- NEMA: 10-50R
- Pole: 3
- Wire: 3
- Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Environmental Specifications
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40C to 60C
- Material Specifications
- Face Material: Thermoplastic
- Body Material: Thermoplastic
- Strap Material: Galvanized Steel
- Color: Black
- Mechanical Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.: Up to 4 AWG
- Product ID: Ratings are permanently marked on device
- Product Features
- NEMA: 10-50R
- Color: Black
- Standards and Certifications
- NEMA: WD-6
- ANSI: C-73
- UL498: File E13399
- CSA C22.2 No. 42: File 152105
- NOM: 057
