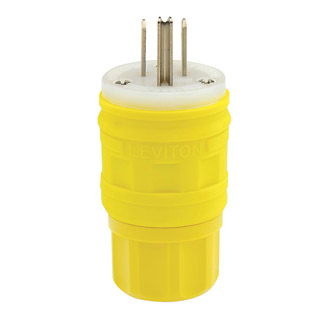

" LEV " 14-W-47 LEVITON ELECTRICAL PRODUCTS
15-AMP 125-VOLT YELLOW WETGUARD PLUG - LEV14W47>
Description
15-AMP 125-VOLT YELLOW WETGUARD PLUG
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Electrical Specifications
- Grounding: Grounding
- Amperage: 15 Amp
- Voltage: 125 Volt
- Pole: 2
- Wire: 3
- Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40C to 60C
Material Specifications
- Body Material: Santoprene TPV
- Compression Nut, Strain Relief:Nylon
- Wire Module: Nylon
- Bushing: Santoprene TPV
- Blades/Contacts: Electroless Nickel-coated Brass
- Terminal Screws: Electroless Nickel-coated Brass
- Assembly Screws: Stainless Steel, Non-Magnetic
Mechanical Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Cord Grip Range (in): .234-.687
- Cord Range: .375 - .655
Product Features
- NEMA: 5-15P
- Color: Yellow
- Blades/Contacts: Nickel-Plated Brass
- Body Material: EPTR Rubber
- Assembly Screws: Stainless Steel 300
Standards and Certifications
- NEMA: WD-6
- ANSI: C-73
- UL: 498
- CSA C22.2 No. 42: File LR-406
- NOM: 057
