" DOD " 124173 DODGE POWER TRANSMISSION PRODUCTS

PrintEmail

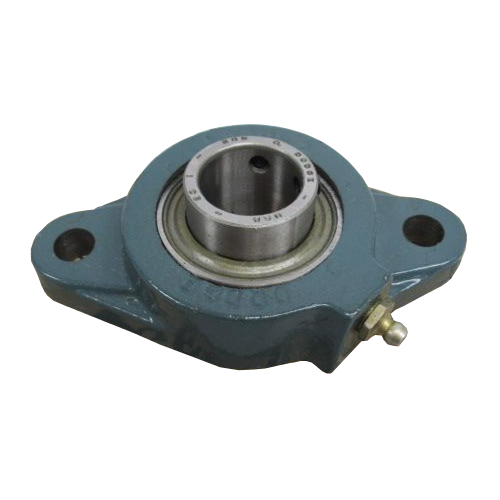

1"-ID 2-BOLT FLANGE UNIT - DOD124173>
Sale Price: $ 60.24
Ask a question about this product
Description

1"-ID 2-BOLT FLANGE UNIT WITH SET SCREW

F-2-BS-C-100 (F2BSC100)

Bore Diameter: 1"
Bolt Center-to-Center Length: 3-57/64"
Overall Length/Diameter: 2-3/4"
Overall Height: 4.88"
Mounting Type: Two-Bolt
Bore Type: Round
Duty Type: Standard Duty
Housing Material: Cast Iron
Locking Device: Set Screw
Seal Type: Contact/Lip
Expansion Type: Non-Expansion Bearing (Fixed)
Finish/Coating: Uncoated
Radial Dynamic Load Capacity: 3146 lb
Radial Static Load Capacity: 1769 lb
Length Through Bore: 1.37"
Maximum RPM: 7,500 RPM
Lubrication Type: Lubrication Fitting
