" JET " 211000 JET EQUIPMENT AND TOOLS
2-TON 10'-LIFT ELECTRIC CHAIN HOIST - JET211000>
Description

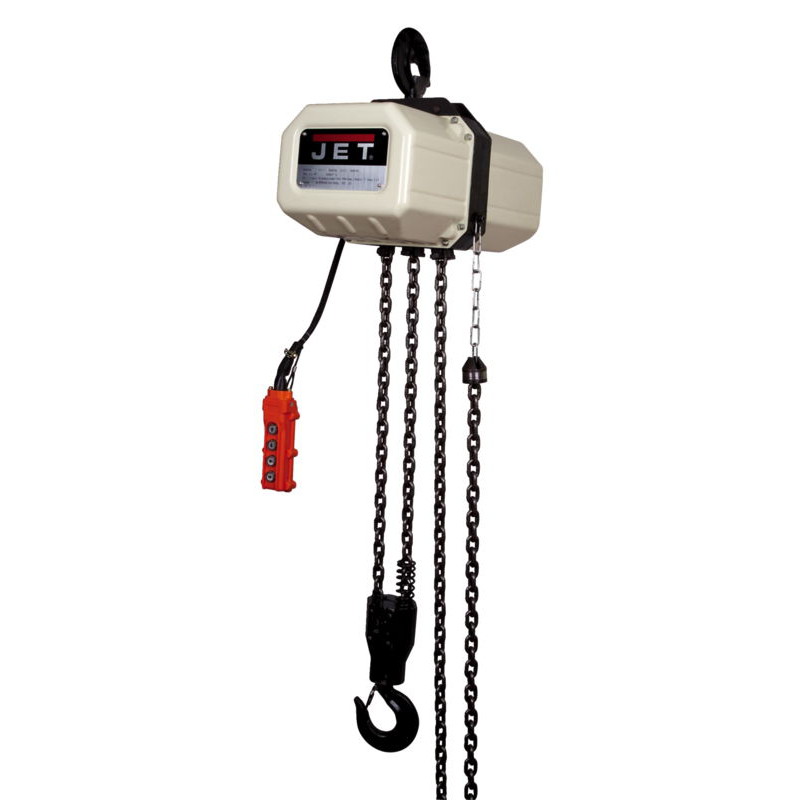

2-TON 10'-LIFT ELECTRIC CHAIN HOIST
JET® SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability.
- SAFETY
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
- Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
- DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- DURABILITY
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
- All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
- PERFORMANCE
- Single Phase
- Duty Rating- H3
- Duty Cycle- 25%
- Standards
- Industry- Complies with OSHA Regulations, ANSI / ASME B30.16 and HST-1 Standards
- Certification- Load tested to 125% of capacity with certificate
- Controls- NEMA 4X compliant push button control pendants
| Load Capacity (Tons) | 2 |
| Lift (Ft.) | 10 |
| Duty Cycle Rating | H3 |
| Duty Cycle (%) | 25 |
| Motor Phase | 1 |
| Lifting Speed (FPM) | 9 |
| Headroom (In.) | 28-1/8 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115 / 230 |
| Load Chain Dimensions (Mm.) | 8 x 24 |
| Number of Falls | 2 |
