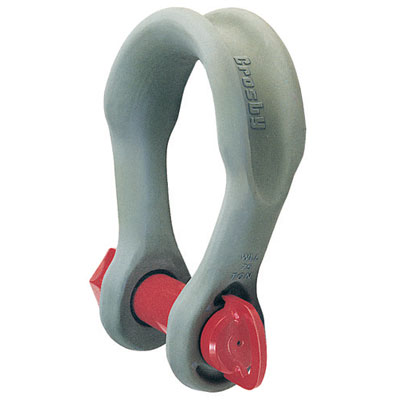

" CRO " 10-21274 CROSBY MATERIAL HANDLING GROUP
G-2160 18-TON SHACKLE - CRO1021274>
Description
G-2160 18-TON SHACKLE
- Size: 2.8"
- Type: Wide Body
- Working Load Limit: 18 tons (39,600 lbs)
- Overall Length: 9.38"
- Overall Width: 6.76"
- Throat Opening: 2.03"
- Pin Diameter: 1.38"
- Forged alloy steel, Quenched and Tempered
- Proof-tested at 2 times Working Load Limit
- Hot-dip galvanized, pin painted red
- Used to connect high-strength synthetic web slings (flat or round), or wire rope slings
- Increased radius in shackle bow provides a minimum 58% gain in sling bearing surface, no need for thimble
- Yields a greater sling strength and greatly improves life of wire rope slings
- Shackle pin does not rotate, has weld-on handles for easier use
