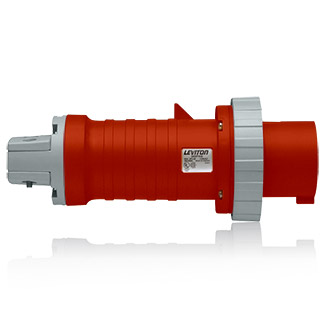

" LEV " 460-P-7-W LEVITON ELECTRICAL PRODUCTS
60-AMP 3-PHASE 48-VOLT PIN & SLEEVE PLUG - LEV460P7W>
Description
60-AMP 3-PHASE 48-VOLT PIN & SLEEVE PLUG
- Electrical Specifications
- Amperage: 60 Amp
- Voltage: 480 Volt 3-Phase
- Pole: 3
- Wire: 4
- Dielectric Voltage: 3000V for 1 min.
- Insulation Resistance: 500V for 1 min; >= 5MΩ
- Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Environmental Specifications
- Flammability: Rated V-0 per UL94
- Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
- Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
- IP Rating: IP67, Watertight
- Material Specifications
- Body Material: Valox 357
- Locking Ring: Valox 357
- Internal Cord Clamp Assembly:Thermoplastic
- External Cord Clamp Assembly:Valox 357
- Gland Cap: Valox 357
- Grommet/Gasket: Chloroprene
- Contact Carrier: Reinforced Nylon
- Phase and Ground Pins: Brass
- Internal Screws: Zinc-plated steel
- Terminal Screws: Steel
- External Screws: Acid-Proof S/S
- Mechanical Specifications
- Cable Secureness: Force: 150lb, Torque: 1.0 ft-lb, Max Disp: <= 3/32"
- Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
- Crush Test: 250lbs for 1 min after -25°C for 6 hrs
- Minimum Withdrawal Force: 15lbs
- Cord Range: .670 - 1.625
- Product Features
- Color: Red
- Standards and Certifications
- UL Listed: 1682 and 1686
- CSA Certified: C22.2 No 182.1
- IEC Rating: 60309-1 and 60309-2
- CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
