" MCT " 35269 MORSE CUTTING TOOLS

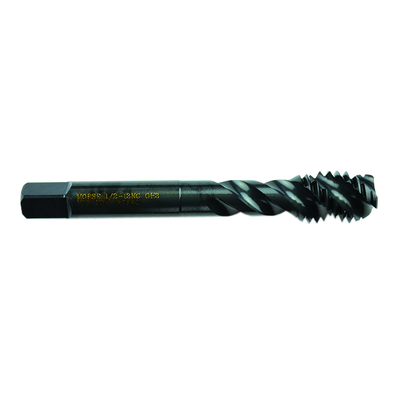

12-MM X 1.75 SPIRAL FLUTE SHEARTAP - MCT35269>
Description
12-MM X 1.75 SPIRAL FLUTE SHEARTAP
- ShearTap™ for Stainless Steel & Carbon Steel up to 35Rc hardness.
- CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.
- Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.
- Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.
| Brand Name | ShearTap™ |
| Chamfer | Semi-Bottoming |
| Class | Metric |
| Coating | Steam Oxide Over Nitride |
| Diameter | M12 |
| Finish | Black |
| Flute Type | Spiral Flute |
| Harmonized Tariff Code | 8207.40 |
| List No. | 2091M |
| Material | High Speed Steel |
| Neck Length | 1.026 |
| Number of Flutes | 3 |
| Origin | Made In U.S.A. |
| Overall Length | 3.3800 |
| Package Quantity | 12 |
| Pitch | 1.75 |
| Pitch Diameter Limit | D6 |
| Style | UNC - Unified Coarse Thread Series |
| Thread Length | .6300 |
| Type | Production |
| UPC Code | 686125352691 |
