" RIG " 91322 RIDGID/RIDGE TOOL PRODUCTS

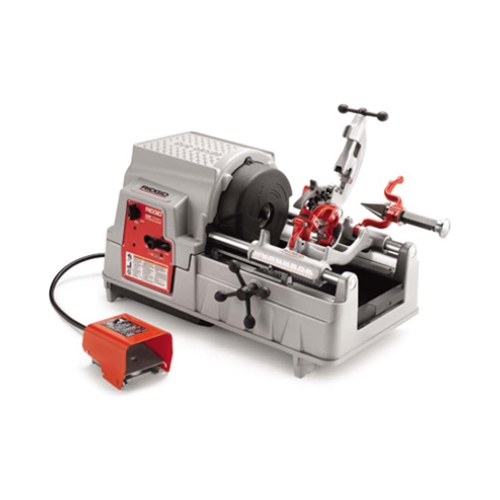

MODEL 535A AUTOMATIC THREADING MACHINE - RIG91322>
Description
MODEL 535A AUTOMATIC THREADING MACHINE
- Automatic chuck.
- Large 6.6 l (1.75 gallon) oil reservoir.
- Large chip tray.
- Generous top cover area for keeping tools and fittings handy.
- High clearance carriage.
- Can be used with geared threader Model 141.
- Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
- Length gauge for quick, accurate cut-off.
| Pipe Capacity | 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader. |
| Bolt Capacity | 1/4"-2" (8 mm-50 mm). |
| Switches | Forward/off/reverse and integral safety foot switch. |
| Chuck | Automatic with four reversible forged jaws. |
| Rear Centering Device | Automatic, centering only. |
| Cutters | Self-centering, full-floating. Two models available: |
| Model 820 Wheel-Type Cutter, pipe capacity 1/8-2'' (6-50 mm), bolt capacity 1/4-1'' (8-25 mm). | |
| Model 821 Blade Type Cutter, pipe capacity 1/2-2'' (15-50 mm). | |
| Reamer | 5-flute cone, RH, 1/8"-2" (3 mm-50 mm). |
| Oil Pump | Self-priming gerotor oil pump. |
