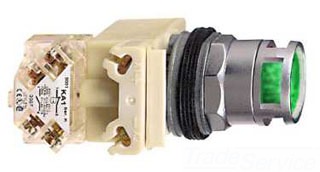

" SQU " 9001-K-3-L35GH2 SQUARE-D COMPANY
PUSH BUTTON-SQU9001K3L35GH2>
Description
9001-K3L35-GH-2Y-238 PUSH BUTTON
- Illuminated Pushbutton
- Full Guarded
- Size 30.5 Mm
- Contact Rating 600 Vac/Vdc 10 Ampere
- Contact Configuration 2NO-2NC
- Lamp Input 24 to 28 Vac/Vdc Full Voltage
- Lamp Included
- Cap/Lens Color Green
- NEMA 1/2/3/3R/4/6/12/13
- Approval Ul 508, CSA, Ce
- PC-1377 (PC1377)
| Actuator | Standard Pushbutton |
| Amperage Rating | 10 Amps |
| Application | Uses Series G Contacts |
| Cap/Lens Color | Green |
| Commodity Code | 42210 |
| Connection | Screw Clamp |
| Contact Configuration | 2 NO - 2 NC |
| Contact Rating | AC15 - DC13 |
| EU RoHS Indicator | Y |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Environmental Conditions | Water tight, Dust tight and Oil tight (Indoor/Outdoor) |
| Gross Weight | 0.490 |
| Indicator | Green |
| Lamp Input Type | 24 to 28 Vac/Vdc Full Voltage |
| Mfr/Vendor | Schneider Electric / Square D |
| Model | 9001K |
| Mounting | Panel |
| Standard | UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked |
| Type | Pushbutton |
| UPC | 785901836339 |
| Voltage Rating | 600V |
R 09072017 EH
