" ARS " 64-931 ARMSTRONG TOOL PRODUCTS COMPANY

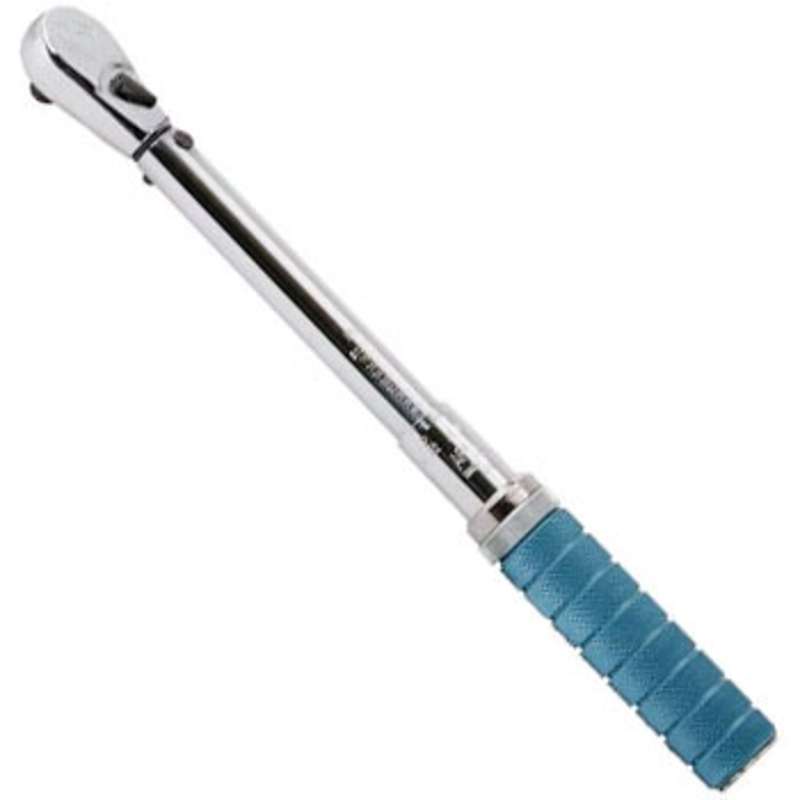

1/4"-DR CERTIFIED RATCHET-HEAD ADJUSTABLE TORQUE WRENCHES-ARS64931>
Description
ARS 64-931
1/4"-DR CERTIFIED RATCHET-HEAD ADJUSTABLE TORQUE WRENCHES
FEATURES
- Made in the USA - Quality and Availability
- Includes "Certificate of Calibration". Certification is the Documentation of the Actual Calibration of the Torque Wrench to Include; Model Number, Serial Number, Date, Actual Readings, Type of Test Equipment, and Test Equipment Calibration Standards
- Innovative Linear Ball Bearing Design Mechanism for Improved Performance; 1) Eliminates Friction Between Spring and Case for Greater Accuracy, 2) Eliminates Speed Sensitivity Errors, and 3) Produces A “Crisp Audible Click” Over the Entire Range
- Twist Detent Locking Ring Allows Easy Setting of Desired Pre-Set Torque and Prevents Accidental Change of the Torque Setting While in Use.
- Rubber Seal Between the Ratchet Head and Tube Keeps Lubrication in and Contaminants Out of the Torque Mechanism Assuring Accuracy and Repeatability.
- Ratchet Head is Specifically Designed for Torque Wrenches with More Material in High Stress Areas
- Enclosed Head Design with 10 Degree Ratcheting Arc Seals Out Contaminants for Improved Performance and Longer Life
- Torque Wrap Ratchet Head Design Reduces Stress on Gear and Pawl Teeth for Greater Strength and Durability
- Lightly Knurled and Grooved Handle Provides A Comfortable, Non-Slip Grip
- Meets or Exceeds ASME B107.14M 1994
SPECIFICATIONS
| Made in USA | Yes |
| Foreign Trade Code | 84661020 |
| UPC | 781412649314 |
| Set | No |
| ASME Specification | B107.14M 1994 |
| Overall Length | 8.000 in |
| Drive Tang Size | 1/4 in |
| Head Width | 1.063 in |
| Head Thickness | 0.813 in |
| Min Torque (Primary Scale) | 5 in/lb |
| Max Torque (Primary Scale) | 50 in/lb |
| Alt Scale Increments | 0.11 Nm |
| Primary Scale Increments | 1 in/lb |
| Max Torque (Alt Scale) | 6.21 Nm |
| Min Torque (Alt Scale) | 0.58 Nm |
| Head Thickness Less Tang | 0.469 in |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
| Head Length | 1.672 in |
