Back to: 6013 MILD STEEL

" FOR " 30550 HCI WELDING SUPPLIES

PrintEmail
50-LBS #6013-5/32" WELDING RODS-FOR30550>
Sale Price: $ 142.14
Ask a question about this product
Description

FOR 30550

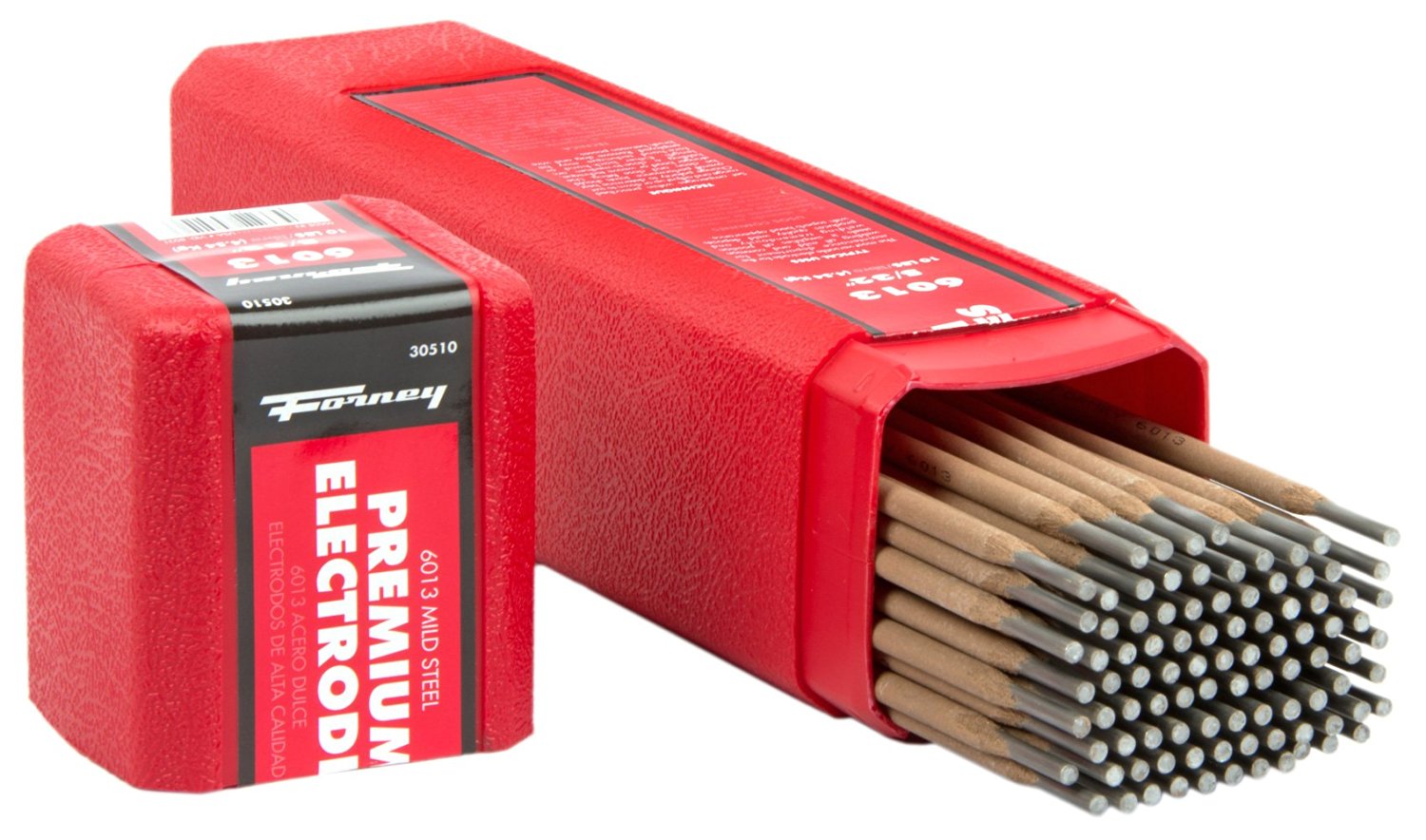

50-LBS #6013-5/32" WELDING RODS



  • All position welding, general purpose rod for shallow penetration or in poor fit up conditions
  • Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC.
  • Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets
  • Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding
  • Use for all types of mild steel fabrication



The Forney 30550 6013 Mild Steel superweld Welding Rod is a mild steel, all-position general purpose rod with medium to shallow penetration. Medium to heavy slag is easily removed. Excellent for poorly fitted joints. Smaller sizes of rod are well suited to low heat on thin metals. 5/32-Inch ie.3.96 mm diameter rod. 50-Pounds ie.22.7 kg. 6013 Tensile strength is 60,000 PSI Amperage 130-170 amps AC, DCEN, DCEP Either Polarity. Typical Spec Example E6011: E is for electrode. The next two numbers ie.60, 70 or 80 indicates the tensile strength of the rod for example 60,000. The third number tells the welding position; ie.1=All position ie.2=Flat or Horizontal position ie.4=Flat, Horizontal, Overhead and Vertical Down position. The fourth number indicates the type of current to be used and coating of the rod; ie.0=Cellulose Sodium, with deep penetration, use Direct Current Electrode Positive ie.1=Cellulose Potassium, with deep penetration, use AC or Direct Current Electrode Positive, or Direct Current Electrode Negative ie.3=Titania Potassium, with light penetration, use AC or Direct Current Electrode Positive ie.8=Low Hydrogen, Iron Powder, with medium penetration use AC or Direct Current Electrode Positive.
