" GNL " PCT-900 GENERAL TOOL

PrintEmail
CONTACT/NONCONTACT LASER TACHOMETER-GNLPCT900>
Sale Price: $ 244.00
Ask a question about this product
Description

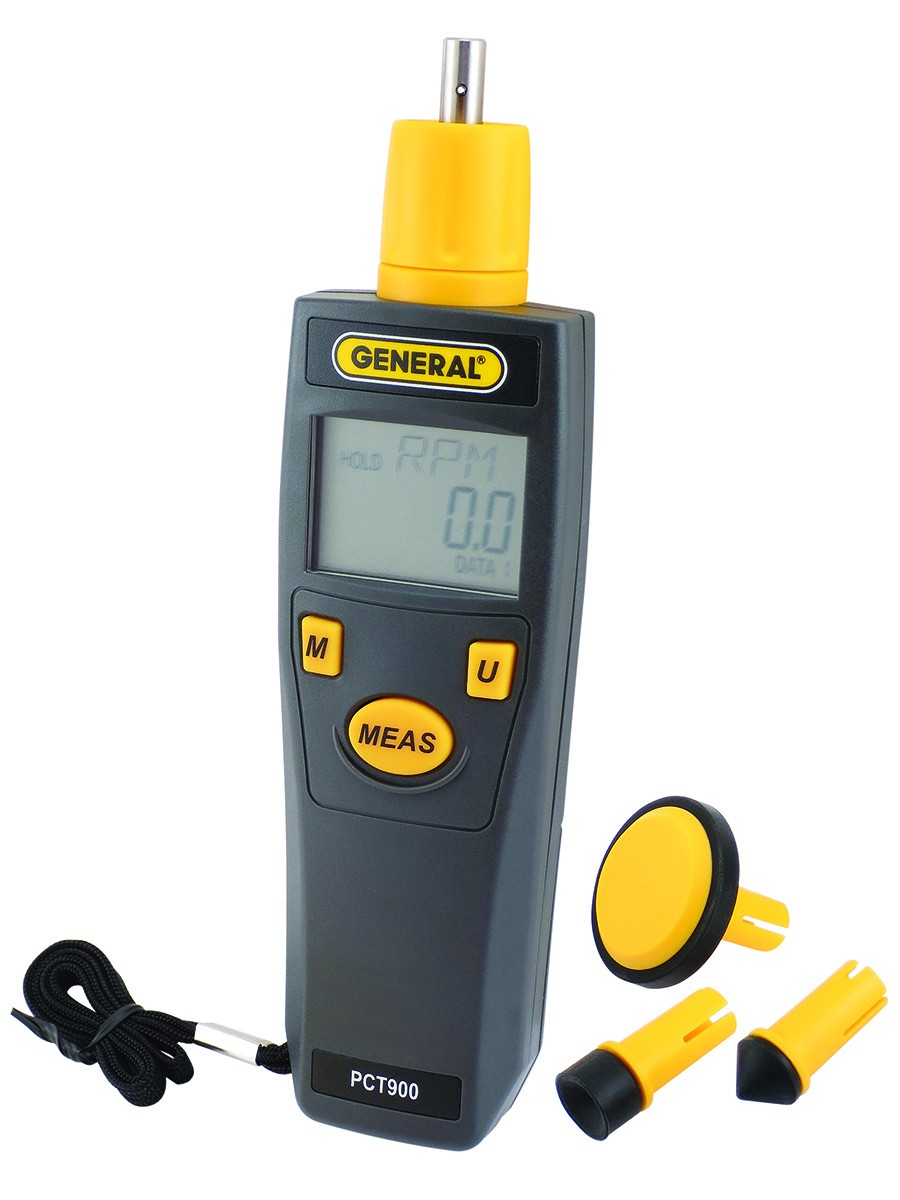

GNL PCT-900

CONTACT/NONCONTACT LASER TACHOMETER



The #PCT900 tachometer measures rotational speeds using a contact (wheel) or non-contact (laser) technique. It's ideal for testing and troubleshooting motors, engines, gearboxes, fans and compressors.



FEATURES

Includes fittings for measuring the speed of a rotating shaft and the linear speed of a conveyor

Also measures any dimension of a stationary object

Stores and indexes up to 40 measurements

Auto ranging

Jumbo 5-digit LCD

Min/max/avg memory + data hold

Auto power off (can be disabled)

NIST calibration is available



SPECIFICATIONS

Measurement ranges: 6 to 25,000 rpm (contact mode), 6 to 99,999 rpm (non-contact mode)

Measurement accuracy: ±(0.01% + 1 digit) from 6 to 6000 rpm; ±(0.05% + 1 digit) at and above 6000 rpm

Measurement resolution: 0.1 rpm below 1000 rpm; 1 rpm at and above 1000 rpm

Linear speed measurement range: 2 to 8202 ft./min (0.6 to 2500m/min)

Linear speed measurement accuracy: ±(0.05% + 1 digit)

Maximum distance to target: 3.3 ft. (1m)

Auto power off: After 30 seconds of inactivity

Operating temperature: 32° to 122°F (0° to 50°C) @ <80% RH

Weight (without battery): 3.4 oz. 96g)

Power source: "9V" battery (included)



INCLUDES

Three rubber rpm adaptors

Rubber/plastic surface speed wheel

20 in. (500mm) of #RT800 adhesive reflective tape

Custom hard plastic carrying case

Battery



DIMENSIONS

7.75 x 1.93 x 1.14 in. (146 x 49 x 29mm)
