" GNL " CT-6235-B GENERAL TOOL

PrintEmail
CONTACT TACHOMETERS-GNLCT6235B>
Sale Price: $ 133.00
Ask a question about this product
Description

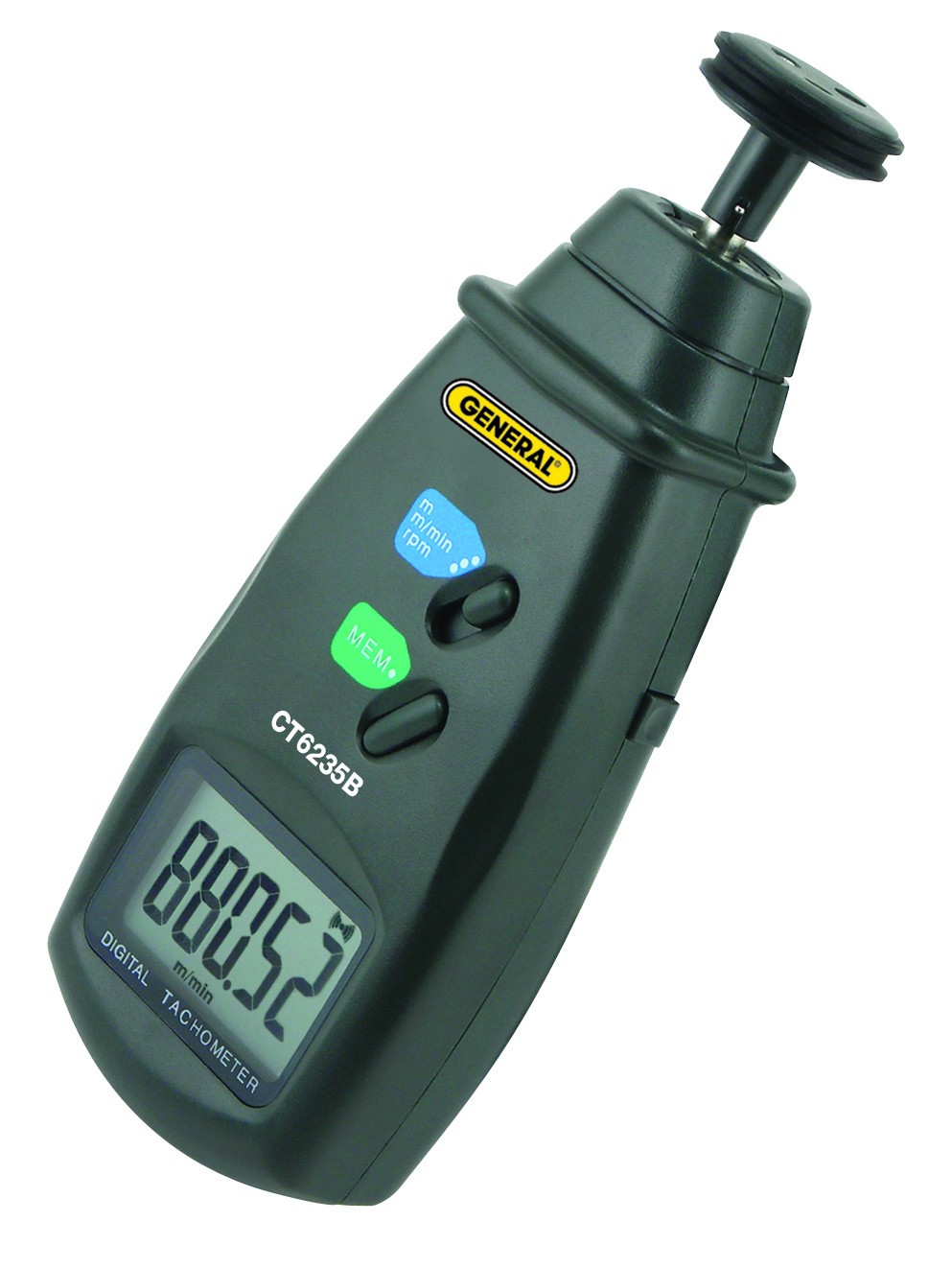

GNL CT-6235-B

CONTACT TACHOMETERS



The #CT6235B Contact Tachometer can measure rotational and linear speeds. It's ideal for testing and troubleshooting motors, engines, gearboxes, fans and compressors.



FEATURES

Includes fittings for measuring the speed of a rotating shaft and the linear speed of a conveyor

Also measures any dimension of a stationary object

Autoranging

Backlit 5-digit LCD

Stores and indexes up to 96 measurements

Min/max memory

Small and light enough for one-handed operation

Auto power off

NIST calibration is available



SPECIFICATIONS

Measurement ranges: Rotational speeds from 0 to 20,000 rpm; Linear speeds from 50mm/min (2 in./min) to 2km/min (6,562 ft./min); Lengths from 50mm to 10km (2 in. to 6.2 miles)

Measurement accuracy: ±(0.05% of reading + 1 digit)

Measurement resolutions: 0.1 rpm for rpm measurements at and below 999 rpm, 1 rpm at higher speeds; 0.01m/min for linear speeds at and below 99.99 m/min, 0.1m/min at higher speeds; 0.02m for lengths

Storage capacity: 96 measurements

LCD size: 1.0625 in. (H) x 1.8725 in. (W) (27 x 47.6mm)

Operating temperature: 32° to 122°F (0° to 50°C) @ <80% RH

Weight: 9.9 oz. (280g)

Power source: Four "AA" batteries (included)



INCLUDES

Three rubber rpm adapters

One rubber/plastic surface speed wheel

Batteries

Hard carrying case



DIMENSIONS

8.27 x 2.91 x 1.46 in. (210 74 37mm)
