" APL " AC-300 APPLETON
3" 90-DEG CABLE & CONDUIT CONNECTOR-APLAC300>
Description
APL AC-300

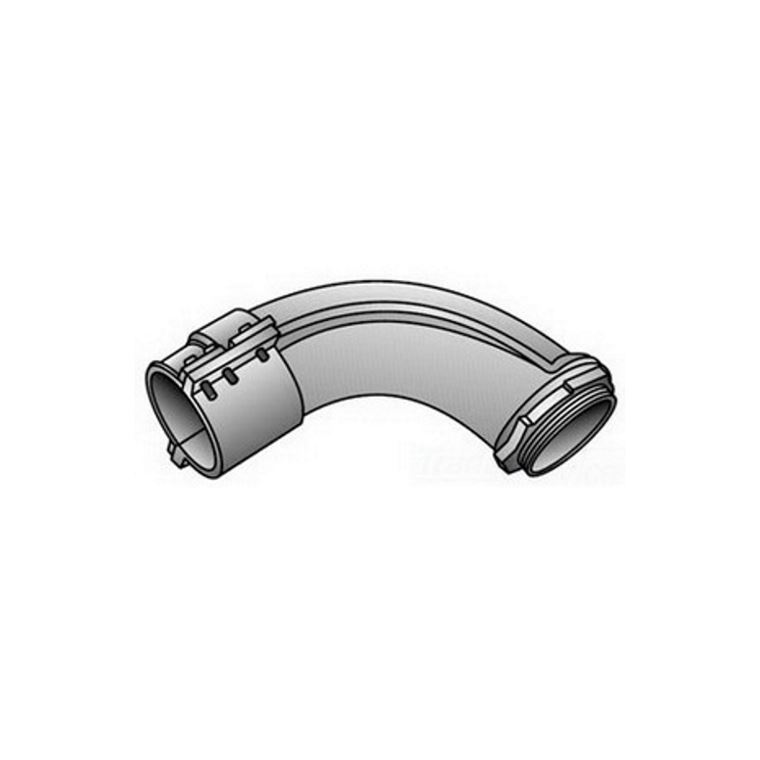

3" 90-DEG CABLE & CONDUIT CONNECTOR
Description
OZ-Gedney Type AC 90 DEG Center Stopped Squeeze Connector, Size: 3 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 3-1/4 - 3-1/2 IN, Malleable Iron, Finish: Zinc Electroplated, 1 IN Thread Length, Dimension A: 7-1/4 IN, Dimension B: 5-1
Application
For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
Standards
Third Party Certification: UL File Number E-11853 (Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored Cable And Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
Features
To ground and secure armored cable and flexible metal conduit to boxes and enclosures; Furnished with locknuts
Specifications
| Conductor Range: | 3-1/4 - 3-1/2 IN |
| Connection: | Male NPS Hub X Screw Clamp |
| Country of Origin: | MX |
| Finish: | Zinc Electroplated |
| Material: | Malleable Iron |
| Size: | 3 IN |
