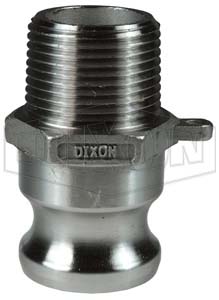

DXN 600-F-SS
6" S/S CAM AND GROOVE COUPLERS
Applications: Designed for use with liquids
Specifications: Produced to interchange iwth all product produced to Commercial Item Description A-A-59326D
How it works: To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down
Uncoupling is as quick and simple as coupling, just lift the cam arms and remove the adapter
Safety notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Pressure rating is based on the seal of the mating part
Pressure rating recommendations are based on the use of the mating Dixon fitings at ambient temperature 70°F/21°C with a standard seal installed
Material | 316 Stainless Steel |
---|---|
Size | 6" |
Maximum Operating Pressure | 75 PSI |
