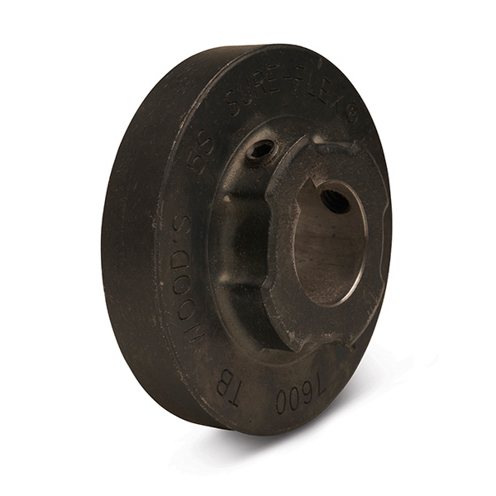

" TBW " 5-J-1-1/8 T B WOODS
1-1/8"-ID S-FLEX COUPLING HALVES-TBW5J11/8>
Description
- Type J flanges size 3 and 4 are manufactured of sintered carbon steel
- The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength
- Size 5 and 6 are made of high-strength cast iron
- All flanges are bored-to-size for a slip fit on standard shafts
- The outside diameter of the flange is machined so the surface can be used to check alignment without a special tool
- Can be used with sleeves of any construction except the Hytrel
- Each flange has a keyseat and one setscrew over the keyway
| Bore Diameter: | 1-1/8 in |
| Flange Diameter: | 3-1/4 in |
| Length Through Bore: | 1-3/64 in |
| Coupling Size Code: | 5 |
| Bore Type: | Finished with Keyway |
| Hub Type: | Spacer Flange |
| Hub Flange Type Code: | J |
| Hub Material: | Steel |
| Coupling Overall Length: | 2-27/32 in |
| Hub End Outside Diameter: | 1-7/8 in |
| Torque Capacity: | 240 in·lb |
| Maximum RPM: | 7600 RPM |
| Horsepower @ 100 RPM: | 0.4 (EPDM & Neoprene) hp |
| Series: | Sure-Flex |
