Coupling Outside Diameter: | 2-15/16 in |
Coupling Size Code: | 5 |

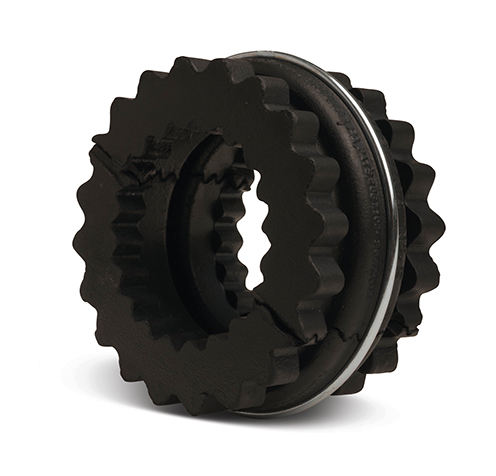

Sleeve Type Code: | N |
Sleeve Construction: | Two Pieces with Ring |
Sleeve Material: | Neoprene |
Coupling Overall Length: | 1-9/16 in |
Torque Capacity: | 312 in-lb |
Maximum RPM: | 7600 rpm |
Horsepower @ 100 RPM: | 0.5 hp |
Maximum Angular Misalignment: | 1 ° |
Maximum Parallel Misalignment: | 0.015 in |
Operating Temperature Range: | 0 to +200 °F |
Series: | Sure-Flex Plus, S-Flex |
Color: | Black w/Green Dot |
Stiffness: | 916 in·lb/rad |
Max HP @ 1750 RPM: | 8.7 HP |
Max HP @ 3500 RPM: | 17 HP |
