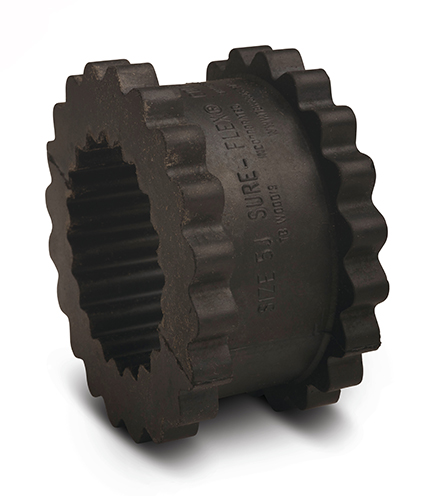

" TBW " 7-JE TB WOODS
COUPLING INSERTS-TBW7JE>
Description
- J sleeves are molded EPDM rubber (E)
- H sleeves are molded Hytrel (H)—designed for high-torque applications, transmit four times as much power as an equivalent EPDM sleeve
- Available in one-piece solid construction (JE, H) or one-piece split construction (JES, HS)
- May be used in any Sure-Flex flange within a given size
- Hytrel sleeves can be used only with S, C and SC flanges, they cannot be used with J or B flanges or as direct replacements for EPDM sleeves
| Coupling Outside Diameter: | 4.3438 in |
| Coupling Size Code: | 7 |
| Sleeve Type Code: | JE |
| Sleeve Construction: | One Piece Solid |
| Sleeve Material: | EPDM Rubber |
| Coupling Overall Length: | 2.1875 in |
| Torque Capacity: | 940 in-lb |
| Maximum RPM: | 5250 RPM |
| Horsepower @ 100 RPM: | 1.2 hp |
| Maximum Angular Misalignment: | 0.0810 in |
| Maximum Parallel Misalignment: | 0.0200 in |
| Operating Temperature Range: | -30 to +275 °F |
| Series: | Sure-Flex® Plus |
| Color: | Black |
| Stiffness: | 2769 in-lb |
| Additional Details: | Replaced by 7JE EPDM SF+ SLEEVE |
