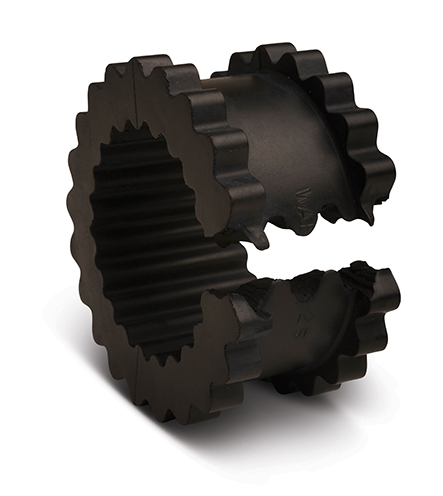

" TBW " 7-JES TB WOODS
COUPLING INSERT-TBW7JES>
Description
| Coupling Outside Diameter: | 4-11/32 in |
| Coupling Size Code: | 7 |
| Sleeve Type Code: | JS |
| Sleeve Construction: | One Piece Split |
| Sleeve Material: | EPDM |
| Coupling Overall Length: | 2-3/16 in |
| Torque Capacity: | 940 in-lb |
| Maximum RPM: | 5250 rpm |
| Horsepower @ 100 RPM: | 1.5 hp |
| Maximum Angular Misalignment: | 1 ° |
| Maximum Parallel Misalignment: | 0.020 in |
| Operating Temperature Range: | -30 to +275 °F |
| Series: | Sure-Flex Plus, S-Flex |
| Color: | Black |
| Stiffness: | 2769 in·lb/rad |
| Max HP @ 1750 RPM: | 26 HP |
| Max HP @ 3500 RPM: | 52 HP |
