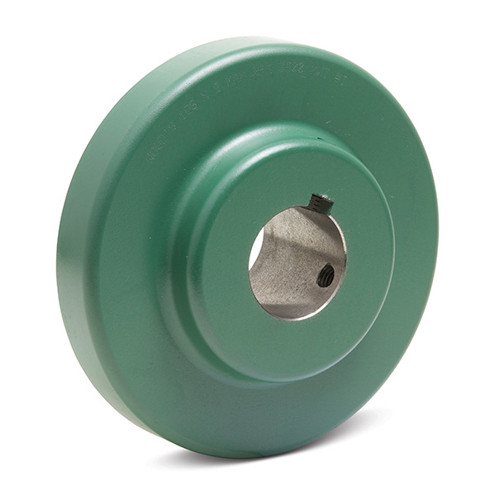

" TBW " 7-S-3/4 TB WOODS
3/4"-ID S-FLEX COUPLING HALF-TBW7S3/4>
Description
- Type S flanges are made of high-strength cast iron and are bored-to-size for slip fit on standard shafts
- They are easy to install and remove, and are available from stock in a wide range of bore sizes
- MPB designates rough stock bore
| Bore Diameter: | 3/4 in |
| Flange Diameter: | 4-5/8 in |
| Length Through Bore: | 1-27/32 in |
| Coupling Size Code: | 7 |
| Bore Type: | Finished with Keyway |
| Hub Type: | Spacer Flange |
| Hub Flange Type Code: | S |
| Hub Material: | Cast Iron |
| Coupling Overall Length: | 2-13/16 in |
| Hub End Outside Diameter: | 3-15/16 in |
| Torque Capacity: | 2875 in·lb |
| Maximum RPM: | 5250 RPM |
| Horsepower @ 100 RPM: | 1.2 (EPDM & Neoprene) hp, 4.6 (Hytrel) hp |
| Series: | Sure-Flex |
