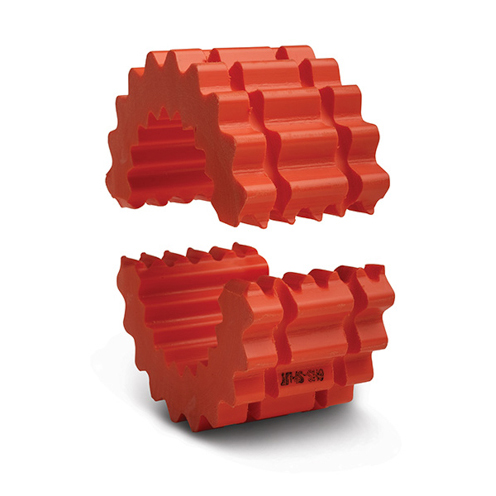

" TBW " 8-HS TB WOODS

PrintEmail
COUPLING INSERT-TBW8HS>
Sale Price: $ 145.95
Ask a question about this product
Description









  • J sleeves are molded EPDM rubber (E)
  • H sleeves are molded Hytrel (H)—designed for high-torque applications, transmit four times as much power as an equivalent EPDM sleeve
  • Available in one-piece solid construction (JE, H) or one-piece split construction (JES, HS)
  • May be used in any Sure-Flex flange within a given size
  • Hytrel sleeves can be used only with S, C and SC flanges, they cannot be used with J or B flanges or as direct replacements for EPDM sleeves
Coupling Outside Diameter: 5-1/16 in
Coupling Size Code: 8
Sleeve Type Code: HS
Sleeve Construction: Two Piece Split
Sleeve Material: Thermoplastic Elastomer
Coupling Overall Length: 2-1/2 in
Torque Capacity: 4530 in·lb
Maximum RPM: 4500 RPM
Horsepower @ 100 RPM: 7.2 hp
Maximum Angular Misalignment: 0.025 °
Maximum Parallel Misalignment: 0.015 in
Operating Temperature Range: -65 to +250 °F
Series: S-Flex
