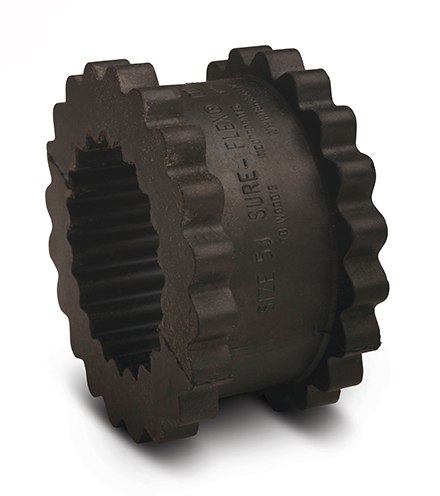

Coupling Outside Diameter: | 6 in |
Coupling Size Code: | 9 |
Sleeve Type Code: | J |
Sleeve Construction: | One Piece Solid |
Sleeve Material: | EPDM |
Coupling Overall Length: | 3 in |
Torque Capacity: | 2340 in-lb |
Maximum RPM: | 3750 rpm |
Horsepower @ 100 RPM: | 3.7 hp |
Maximum Angular Misalignment: | 1 ° |
Maximum Parallel Misalignment: | 0.025 in |
Operating Temperature Range: | -30 to +275 °F |
Series: | Sure-Flex Plus, S-Flex |
Color: | Black |
Stiffness: | 6875 in·lb/rad |
Max HP @ 1750 RPM: | 65 HP |
Max HP @ 3500 RPM: | 130 HP |
