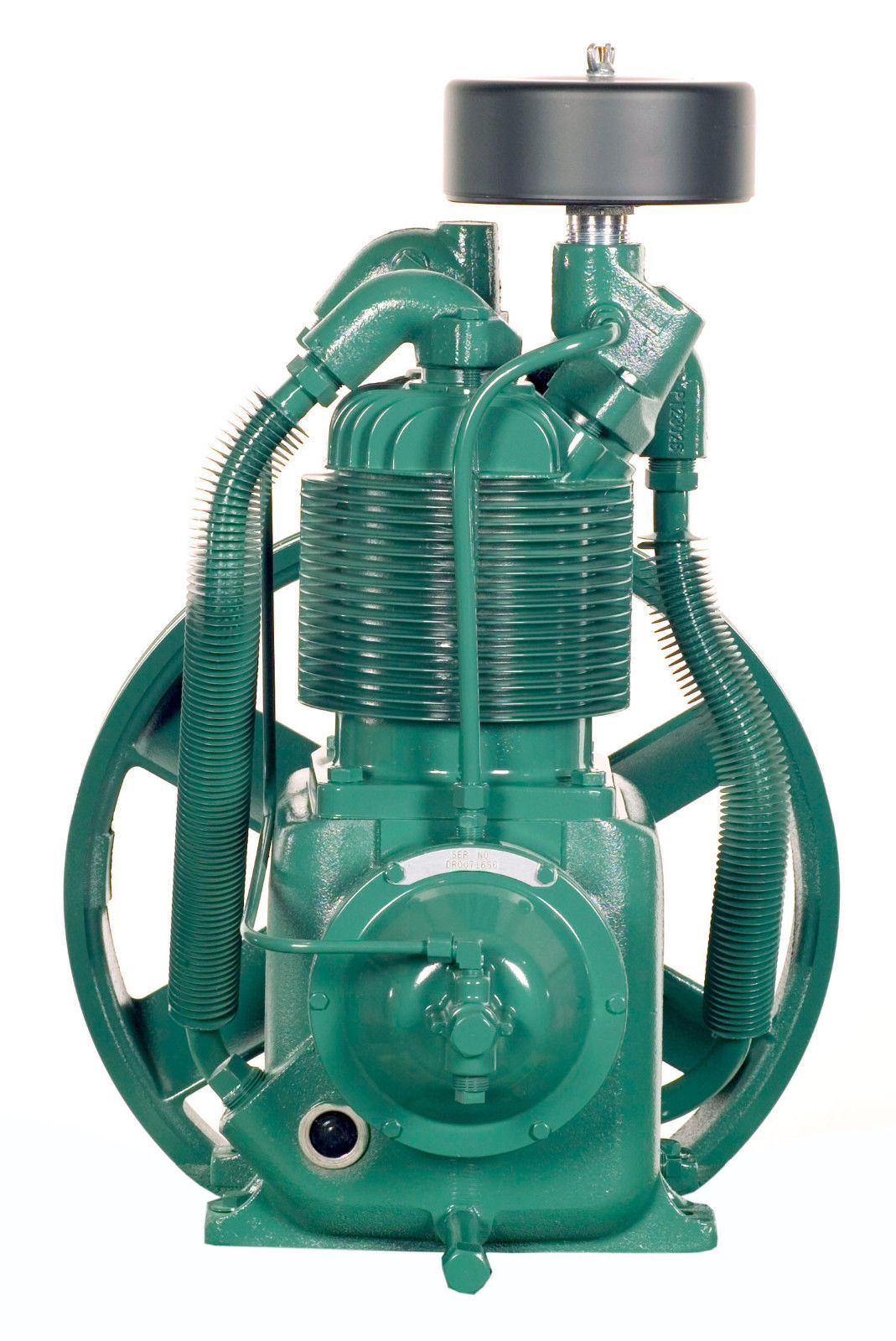

" CAC " R-15-B-HU CHAMPION AIR

PrintEmail
COMPRESSOR PUMPS W/HEAD UNLOADERS-CACR15BHU>
Sale Price: $ 2,403.47
Description

COMPRESSOR PARTS W/HEAD UNLOADERS

Designed for heavy-duty industrial applications. Die-cast aluminum cylinders with cast-iron sleeves for greater efficiency, cooling, and service life. Pumps are splash lubricated. Balanced, fan-type flywheels provide air flow for cooling pump. Rotation CCW facing flywheel. Intercoolers efficiently dissipate heat. Include unloader and pilot valve for constant speed operation. Centrifugal unloader provides efficient pressure release for loadless starting.This pump is for gas powered compressors or compressors with dual control option for continuous run capability.

Pump Design
Integral Cylinder / Head with no head gasket to blow
Large Diameter Intercooler Finned Tubes – Max efficiency
High Flow Disc & Spring Valves – Low lift long life
Tapered Roller Type Main Bearing – Longest Life
Automotive Type Inlet Filter – Easy to check oil level
Oil Sight Glass – Easy to Check Oil Level
Pressure Relief Valves – Intercooler & Discharge
Centrifugal Unloader – Loadless Starts


Specifications

HP RANGE3 – 5 – 7.5

MAX PSIG175
CFM RANGE9.7 – 23.4

STAGES2
C.F.DISP PER REV.02916
RPM RANGE440-990
BORE L.P IN4-5/8
BORE H.P IN2-1/2
STROKE IN3
CYLINDERS2
LUBRICATIONSPLASH
OIL CAPACITY QT2
DISCHARGE OPENING3/4″ TUBING
FLYWHEEL DIA IN16.5
BOLTDOWN WIDTH IN8-3/4
BOLTDOWN DEPTH IN5-3/4
HEIGHT IN24
DEPTH IN20
WIDTH IN17
WEIGHT LB125
