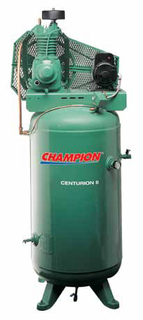

" CAC " VRV-5-8-1-PH CHAMPION AIR
5-HP 80-G 1-PH V AIR COMPRESSORS-CACVRV581PH>
Description
5-HP 80-G 1-PH V AIR COMPRESSORS
5 HP, 208/230 Volt (Please Specify when ordering!), Single phase, 1800 RPM, 80 Gallon Vertical Tank
17.3 CFM at a compressor speed of 734 RPM
Description:
At Champion, air compressor systems are our only products. We know and understand the application of our products in many different operating environments. Our goal is to provide you with the compressors that fulfill — and exceed — your expectations and requirements. Loaded with rugged features, splash-lubricated Centurion II Series reciprocating compressors deliver longlasting performance and tremendous value. Special-alloy steel reed valves provide a self-cleaning design that maintains peak performance throughout the life of the compressor. Cast iron cylinders and heads offer rugged, industrial-rated dependability. Tank mounted units are available in 5, 7.5, 10 and 15 horsepower models, mounted on horizontal or vertical ASME coded air receivers for maximum installation versatility.
Features:
- Splash Lubricated
- Two-Stage Design
- 100% Cast Iron Compressor Pump
- Alloy Steel Reed Valves
- Oil Level Site Glass
- Deep Finned Intercooler
- Industrial Grade Intake Filter and Silencer
- Factory Filled with ChampLub AC Lubricant
- All Pumps are Factory Tested Prior to Shipment
- Made in USA!
Standard Equipment:
- Automatic Start/Stop Operation
- Magnetic Starters* (Not available with 3450 rpm motor)
- OSHA Approved Belt Guard
- NEMA-Rated Electric Motors
- ASME Coded Receivers
- Bucket High Drain Valve
- 0–300 PSIG Air-Pressure Gauge on Tank
- Preset Pressure Switch
NI 05232017 EH
