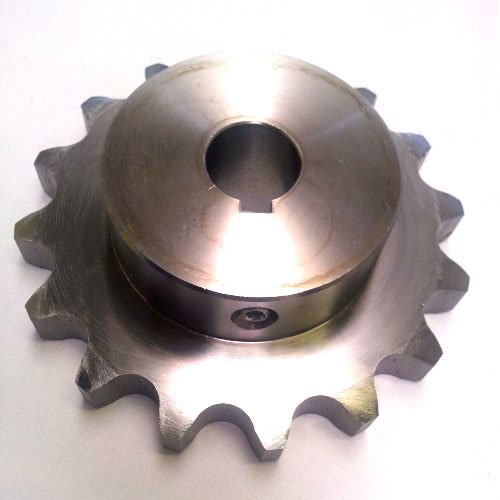

15-T #32-CHAIN MPB METRIC SPROCKET
For Ametric® No. 32 Single Strand Chain with
9.525mm Pitch
5.72mm Roller Width
6.35mm Roller Diameter
5.25mm Sprocket Single Tooth Width (B1)
50 mm Outside Diameter (Approximate) (de)
34 mm Hub Diameter (dn)
8 mm Pilot (MPB) Bore +/-1mm (d1)
25 mm Total Width (A)
015 Teeth
