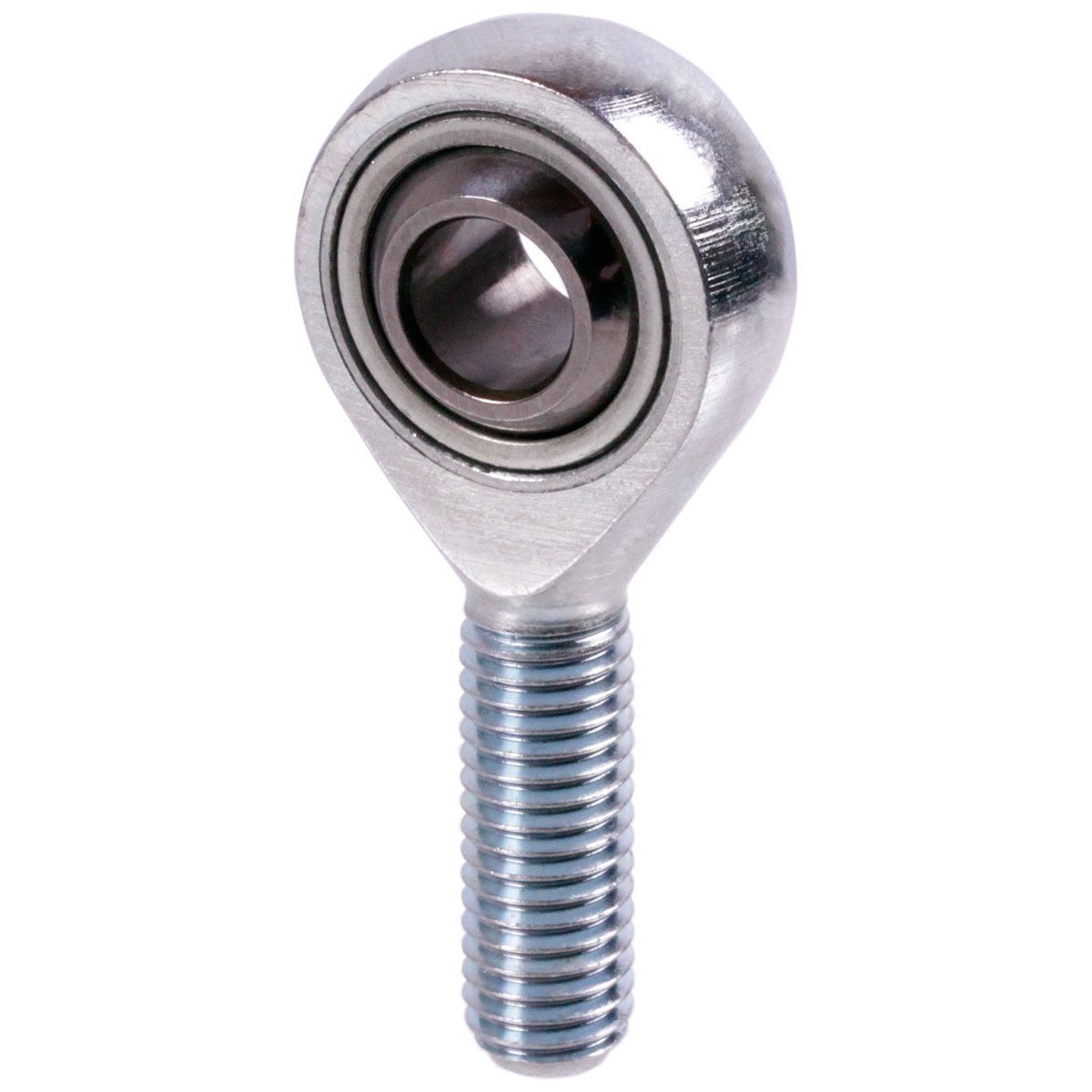

14-MM R/HAND MALE ROD ENDS
SA 14 K Metric Rod End Spherical Self-Lubricating
14 mm Bore (d1)
M 14 Metric Thread (d3)
36 mm Outside Dia. (d6) 19 mm Bearing Width (b1)
14 mm Rod End Head Width (b3)
60 mm Height (h)
38 mm Thread Length (i)
14 Max Degrees of Tilt (o)
0.129 kg (Weight)
41.9 kN (Static Radial Load Rating)
20.8 kN (Static Axial Load Rating)
