" CAP " 6423000 HCI PREFERRED SUPPLIER

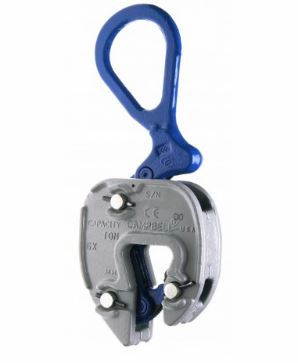

1/2-TON GX PLATE LIFTING CLAMP-CAP6423000>
Description
1/2-TON GX PLATE LIFTING CLAMP
- Features:
-
- Drop-forged and heat treated body and components
- Can be used for both vertical and horizontal to vertical lifting through 180°
- Exclusive feature is a patented wear indicator system.
- When any of the cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam.
- Note: The pad and cam should be replaced at the same time
- Clamps are 100% proof tested and certificate of test supplied with each clamp
- Minimum WLL of at least 10% of the maximum WLL
| Grip Range | 1/16 to 5/8 in. |
| Working Load Limit Metric Ton | 1/2 t |
| A Dimension | 4 in |
| B Dimension | 9-1/2 in |
| C Dimension | 2-3/16 in |
| D Dimension | 2-3/4 in |
| E Dimension | 2 in |
| F Dimension | 4-1/8 in |
| G Dimension | 2-7/8 in |
| H Dimension | 1-3/8 in |
| I Dimension | 4-7/8 in |
| Weight Each (lbs.) | 4.00 lb |
| Made in USA | Yes |
NI 02152018 EH
