" RIG " 93287 RIDGID/RIDGE TOOL PRODUCTS
#535-M PIPE THREADING MACHINES-RIG93287 >
Description

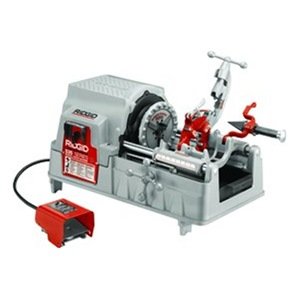

#535-M PIPE THREADING MACHINES
The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir make the 535 ideal for longer uninterrupted threading. The 535 features a high clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID equipment.
Features
Large 1.75 gallon oil tray.
100% larger chip tray.
Generous top cover for keeping tools and fi ttings handy.
High clearance carriage.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geared threaders Models 141 and 161.
Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
Length gauge for quick, accurate cut-off.
Approved by CSA to CSA and UL standards (115V only).
Specifications
Pipe Capacity: 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity: 1/4"-2" (6mm-50mm).
Motor: 1/2 HP, single-phase, 115V, 50/60 Hz, 15 amp reversible universal motor. (36 RPM)
Switches: FOR/OFF/REV and Integral safety foot switch.
Chuck: Speed Chuck™ with replaceable rocker-action jaw inserts (3).
Rear Centering Device: Cam-action, turns with chuck.
Cutters: self-centering, full-floating. Two models available:
– One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
– Two Optional. No. 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart.
Spindle Speed: 36 RPM standard (no load), 54 RPM model also available.
Reamer: 5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump: Self-priming gerotor oil pump.
RH/LH combination reamer available.
Standard Equipment
One No. 811A universal, quick-opening die head.
One set 1/2"-3/4" universal alloy dies.
One set 1"-2" universal alloy dies.
One No. 820 cutter.
One No. 341 reamer.
One gallon of premium extreme performance thread cutting oil.
Four hex wrenches.
One spare E-1032 cutter wheel.
