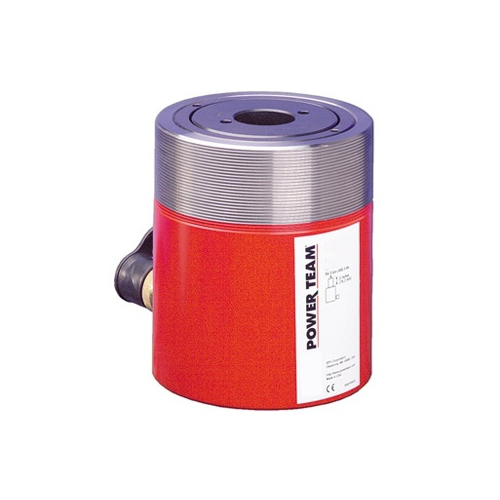

" PTD " RH-203 POWER TEAM COMPANY
20-TON 3-STROKE CENTER HOLE CYLINDER - PTDRH203 >
Description
20-TON 3-STROKE CENTER HOLE CYLINDER
- 20 Ton Center Hole Single Acting Hydraulic Cylinder RH203
- Single-Acting
- Spring-Return
- Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.
- Interchangeable piston head inserts provide versatility of application.
- Withstands full "dead-end" loads.
- Corrosion resistant standpipe has "Power Tech" treatment.
- All cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler.
- Aluminum cylinder body and piston are featured on the RHA306 cylinder.
- ASME B30.1
- 10000 psi
- Cylinder Capacity: 20 ton
- Stroke: 3.0 in
- Oil Capacity: 11.76 in³
- Retracted Height: 6 1/16"
- Extended Height: 9 1/16"
- Outside Diameter: 4"
- Base to Port:1"
- Piston Rod Diameter: 2 3/4"
- Center Hole Diameter: 1 3/64"
- Insert Thread and Size: 2 1/4 - 12"
- Mounting Holes Bolt Circle: 3/8-16 x 3 1/4"
- Cylinder Effective Area: 3.92 in²
- Internal Pressure at Cap.: 10186 psi
- Tons at 10,000 psi: 19.6
- Product Weight: 20 lb
- Material: Aluminum
- Series: RH
