" JET " 354169 JET EQUIPMENT AND TOOLS

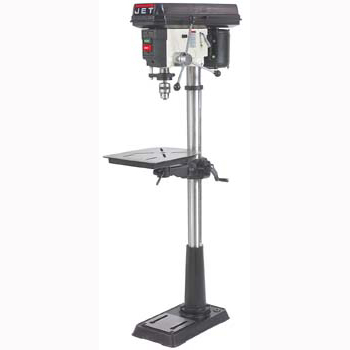

16-1/2" INDUSTRIAL DRILL PRESS - JET354169 >
Description
The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, worklight, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
| Style (Type) | Floor Mount |
| Swing (In.) | 16-1/2 |
| Spindle Travel (In.) | 4-3/8 |
| Number of Spindle Speeds | 16 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Speed (RPM) | 200 - 3,630 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Table Size (L x W) (In.) | 13-3/4 |
| Table Tilt (Deg.) | 45 R & L |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-1/8 |
| Base Size (In.) | 11-1/8 x 19-5/8 |
| Motor Power (HP) | 3/4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115, 230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps.) | 9, 4-1/2 |
