" JET " 354170 JET EQUIPMENT AND TOOLS

PrintEmail

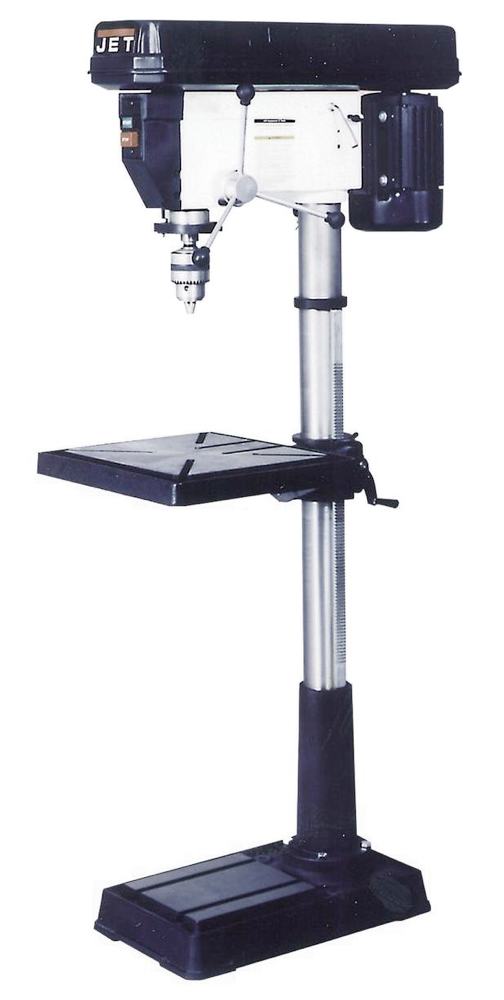

20" 115/230V FLOOR INDUSTRIAL DRILL PRESS - JET354170 >
Sale Price: $ 2,262.35
Ask a question about this product
Description

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class.



  • 20" FLOOR DRILL PRESS
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • On/off switch located on front of the drill press head
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Spindle is supported by high quality ball bearings
  • Built-in work lamp on all models, bulb not included
  • Drill chuck and key included
Style (Type) Variable
Drills to Center of Circle (in) 20
Drilling Capacity Cast Iron (In.) 1
Drilling Capacity Mild Steel (In.) 3/4
Distance Column to Spindle (In.) 10
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 150 - 4,200
Column Diameter (In.) 3-3/8
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-5/8
Spindle Distance to Base (In.) 46-3/4
Spindle Distance to Table (Max.) (In.) 29-1/8
Table Size (L x W) (In.) 18-1/2 x 16
Table Travel (In.) 21-1/2
T-Slots Number and Size (In.) 6 & 1/2
T-Slot Centers (In.) 3-1/2
Work Table Weight Capacity (Lbs.) 80
Base Dimensions (In.) 13-3/4 x 22-3/4
Base Work Table (In.) 13 x 8-1/2
Base Slots Number & Size (In.) 2 & 5/8
Motor (HP) 1-1/2 HP, 115/230V, 1 Ph
Prewired (V.) 115
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Weight (Lbs.) 282
